Centralized Application Authorization with Kyverno and Istio

Why is Kubernetes Authorization so Complex

Securing Kubernetes API access is complex. After a user is authenticated (verifying who they are), an application’s authorization workflow determines what specific actions and data that user is permitted to access by checking their credentials against a set of predefined access rules. This process typically involves a resource server validating an access token provided by the application before granting access to a protected resource.

Standard solutions across industries require sidecars, are costly, and do not scale well. This post describes a more straightforward solution: a centralized Kyverno Authorization Server that uses the new Kyverno CEL-based ValidatingPolicy with Istio service mesh. This solution eliminates sidecars, enhances policy consistency, and enables fine-grained, JWT-based authorization for all traffic.

The architecture reduces resources, offers instant policy updates, and centralizes audit trails, transforming authorization into a streamlined, centrally managed capability that cuts costs, ensures compliance, and simplifies operations.

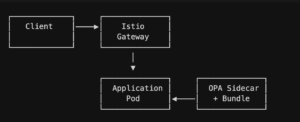

What are the Challenges with OPA Sidecar Authorization in Kubernetes?

When using Istio OPA-based authorization in Kubernetes, it typically follows this pattern:

Challenge	Description
Resource Multiplication	Every pod requires an additional OPA sidecar container, significantly increasing memory and CPU consumption.
Bundle Distribution	Rego policies must be compiled, packaged, and distributed using complex mechanisms like S3 or similar external storage.
Update Latency	Policy changes require a full bundle rebuild and often necessitate a time-consuming pod restart to take effect.
Consistency Risk	Different pods may run on different policy versions during deployment rollouts, risking inconsistent security enforcement.
Operational Overhead	Managing and maintaining N sidecars across hundreds of microservices adds substantial complexity to the platform team’s workload.

Why Choose Centralized Kyverno for Sidecarless Authorization?

The Kyverno Authorization Server with Istio provides a superior, centralized alternative that directly addresses the challenges of sidecar-based authorization.

Advantages:

• Sidecarless: Authorization decisions happen at the Envoy proxy level via external auth
• Performance: CEL expression highly optimized for performance, critical for latency-sensitive applications whereas Rego can be less performant due to its power and expressiveness, better for non-latency-critical use cases
• Centralized policies: Kyverno ValidatingPolicy CRDs applied once, enforced everywhere
• Immediate updates: Policy changes take effect instantly—no pod restarts
• Consistent enforcement: Single source of truth for all authorization decisions
• Native Kubernetes: Policies are CRDs managed with kubectl and GitOps workflows

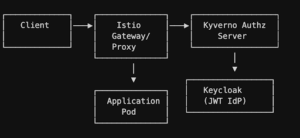

How Does Centralized JWT Authorization with Kyverno and Istio Work?

1. Request Interception: When a request arrives at the Istio ingress gateway or sidecar proxy, Istio’s AuthorizationPolicy resource (with action: CUSTOM) intercepts it.
2. External Authorization Call: The Envoy proxy makes a gRPC call to the Kyverno Authorization Server, passing request attributes (headers, path, method, etc.).
3. Policy Evaluation: Kyverno evaluates the request against ValidatingPolicy CRDs, which can:
   1. Extract and validate JWT tokens from the Authorization header
   2. Verify token signatures using JWKS endpoints
   3. Check token expiry and custom claims
   4. Match requests by service, namespace, path, method, and headers
   5. Return allow/deny decisions with custom status codes
4. Decision Enforcement: The proxy allows or denies the request based on Kyverno’s decision, without the application ever seeing unauthorized requests.
5. Logging and Observability: All authorization decisions are logged centrally, providing clear audit trails.

Key Technologies for Kyverno-Istio Authorization

Kyverno (1.15+): A Kubernetes-native policy engine that uses CEL (Common Expression Language) for policy definitions. Focused initially on admission control, Kyverno now supports Envoy external authorization mode.

Istio: A service mesh that provides traffic management, security, and observability. The external authorization filter delegates auth decisions to external services.

Keycloak: An open-source identity and access management solution that issues standards-compliant JWT tokens. Can be replaced with any OIDC-compatible IdP (AWS Cognito, Auth0, etc.).

CEL: Common Expression Language—a non-Turing complete expression language designed for fast, safe evaluation in sandboxed environments, used by Kyverno for policy logic.

Prerequisites

Before proceeding, ensure you have the following:

Required Knowledge

• Kubernetes fundamentals: Understanding of pods, services, namespaces, and CRDs
• Service mesh concepts: Familiarity with Istio or similar mesh technologies
• JWT and OAuth2: Basic understanding of token-based authentication
• Policy-as-code: Exposure to declarative policy concepts

Required Tools

Tool	Version	Purpose	Installation
Docker	20.x+	Container runtime	Install Docker
kubectl	1.28+	Kubernetes CLI	Install kubectl
Helm	3.12+	Package manager	Install Helm
Kind	0.20+	Local Kubernetes	Install Kind
curl	Any	HTTP client	Usually pre-installed
jq	1.6+	JSON processor	Install jq
Terraform (optional)	1.5+	Keycloak config	Install Terraform

Environment Setup

Minimum resources for local development:

• 8GB RAM
• 4 CPU cores
• 20GB free disk space

Kubernetes cluster options:

• Local: Kind, Minikube, or Docker Desktop
• Cloud: EKS, GKE, AKS with Istio support
• On-premises: Any Kubernetes 1.28+ cluster

Step-by-Step Instructions

Step 1: Create Local Kubernetes Cluster

We’ll use Kind (Kubernetes in Docker) for a lightweight local cluster:

# Create cluster with specific Kubernetes version

kind create cluster –name authz-demo –image kindest/node:v1.34.0

# Verify cluster is running

kubectl cluster-info

kubectl get nodes

What this does: Creates a single-node Kubernetes cluster running in Docker. Kind is ideal for local development and testing without cloud costs.

Expected output:

Creating cluster “authz-demo” …

✓ Ensuring node image (kindest/node:v1.31.0) 🖼

✓ Preparing nodes 📦

✓ Writing configuration 📜

✓ Starting control-plane 🕹️

✓ Installing CNI 🔌

✓ Installing StorageClass 💾

Step 2: Deploy Keycloak Identity Provider

Keycloak will issue JWT tokens for testing. In production, use your existing IdP (AWS Cognito, Azure AD, Okta, etc.).

kubectl create ns keycloak

kubectl create -f https://raw.githubusercontent.com/keycloak/keycloak-quickstarts/refs/heads/main/kubernetes/keycloak.yaml -n keycloak

# By default the resource in the menifest is on higher side which can be edited according to the resource constraints

What this does: Deploys Keycloak with an embedded PostgreSQL database. Keycloak will issue OIDC-compliant JWT tokens that our policies will validate.

Access Keycloak (in a separate terminal):

# Port forward to access Keycloak locally

kubectl port-forward -n keycloak svc/keycloak 8080:8080

Navigate to http://localhost:8080 and log in with admin/admin.

Configure test realm and user (using Terraform or manually):

Apply the Terraform code present in GitHub.

# Option 1: Using Terraform (if keycloak.tf exists)

terraform init

terraform apply -auto-approve

# Option 2: Manual configuration via Keycloak Admin Console

# 1. Create realm: “demo-realm”

# 2. Create client: “demo-client” with client secret

# 3. Create user: “testuser” with password

# 4. Assign groups: “platform-admins”, “developers”

Step 3: Install Certificate Management

Kyverno requires TLS certificates for secure gRPC communication with Istio:

# Install cert-manager

helm install cert-manager \

--namespace cert-manager –create-namespace \

--wait \

--repo https://charts.jetstack.io cert-manager \

--set crds.enabled=true

Create self-signed certificate issuer (production should use Let’s Encrypt or internal CA):

kubectl apply -f - <<EOF

apiVersion: cert-manager.io/v1

kind: ClusterIssuer

metadata:

name: selfsigned-issuer

spec:

selfSigned: {}

EOF

What this does: cert-manager automates certificate lifecycle management. The ClusterIssuer creates self-signed certificates on demand for development purposes.

Step 4: Install Kyverno Authorization Server

# Install Kyverno ValidatingPolicy CRD

kubectl apply -f \

https://raw.githubusercontent.com/kyverno/kyverno/main/config/crds/policies.kyverno.io/policies.kyverno.io_validatingpolicies.yaml

# Install Kyverno Authorization Server

kubectl create ns kyverno

helm install kyverno-authz-server \

--namespace kyverno \

--wait \

--repo https://kyverno.github.io/kyverno-envoy-plugin kyverno-authz-server \

--values - <<EOF

certificates:

certManager:

issuerRef:

group: cert-manager.io

kind: ClusterIssuer

name: selfsigned-issuer

EOF

What this does:

• Installs the ValidatingPolicy CRD that defines authorization rules
• Deploys the Kyverno Authorization Server that evaluates policies
• Configures automatic TLS certificate generation

Verify installation:

kubectl get pods -n kyverno

kubectl get crd validatingpolicies.policies.kyverno.io

Expected: One running pod and the CRD installed.

Step 5: Install Istio Service Mesh

Install Istio with the Kyverno external authorization provider configured:

# Install Istio base components

helm install istio-base \

--namespace istio-system –create-namespace \

--wait \

--repo https://istio-release.storage.googleapis.com/charts base

# Install Istio control plane with Kyverno integration

helm install istiod \

--namespace istio-system \

--wait \

--repo https://istio-release.storage.googleapis.com/charts istiod \

--values - <<EOF

meshConfig:

extensionProviders:

- name: kyverno-authz-server

envoyExtAuthzGrpc:

service: kyverno-authz-server.kyverno.svc.cluster.local

port: 9081

EOF

What this does:

• Installs Istio’s control plane (istiod)
• Configures the kyverno-authz-server as an external authorization provider
• Enables Envoy proxies to delegate authorization decisions to Kyverno

Verify Istio installation:

kubectl get pods -n istio-system

You should see the istiod pod running.

Step 6: Deploy Test Application

We’ll use HTTPBin, a simple HTTP request/response service:

# Create namespace and enable Istio injection

kubectl create ns app

kubectl label namespace app istio-injection=enabled

# Deploy HTTPBin

kubectl apply -n app -f https://raw.githubusercontent.com/istio/istio/release-1.24/samples/httpbin/httpbin.yaml

# Verify deployment

kubectl get pods -n app

What this does: Creates a test application with an Istio sidecar automatically injected. The sidecar will intercept requests and consult Kyverno for authorization.

Expected output: You’ll see two containers in the HTTPBin pod—the application and the Istio proxy.

Step 7: Configure Authorization Policies

Now we’ll create the actual authorization rules.

Create Istio AuthorizationPolicy (instructs Istio to use Kyverno):

kubectl create -n app -f - <<EOF

apiVersion: security.istio.io/v1

kind: AuthorizationPolicy

metadata:

name: kyverno-authz

spec:

action: CUSTOM

provider:

name: kyverno-authz-server

rules:

- {} # Intercept all requests

EOF

What this does: Tells Istio to call the Kyverno Authorization Server for every request to services in the app namespace.

Create Kyverno ValidatingPolicy (defines authorization logic):

Apply kyverno validating-policy.yaml

kubectl apply -f - <<EOF

apiVersion: policies.kyverno.io/v1alpha1

kind: ValidatingPolicy

metadata:

name: jwt-validation

namespace: app

spec:

failurePolicy: Fail

evaluation:

mode: Envoy

variables:

# JWKS endpoint (adjust for your IdP)

- name: token_issuer

expression: string(‘http://keycloak.keycloak.svc.cluster.local:8080/realms/demo-realm/protocol/openid-connect/certs’)

# Fetch public keys for JWT validation

- name: certs

expression: jwks.Fetch(variables.token_issuer)

# Extract Authorization header

- name: authorization

expression: object.attributes.request.http.headers[?“authorization”].orValue(“”).split(” “)

# Parse and validate JWT token

- name: token

expression: >

size(variables.authorization) == 2 &&

variables.authorization[0].lowerAscii() == “bearer”

? jwt.Decode(variables.authorization[1], variables.certs)

: null

validations:

# Rule 1: Require valid JWT token

- expression: >

variables.token == null || !variables.token.Valid

? envoy.Denied(401).Response()

: null

# Rule 2: Block access to /get/* unless in admin group

- expression: >

object.attributes.request.http.path.startsWith(“/get”) &&

!(“platform-admins” in variables.token.Claims.groups)

? envoy.Denied(403).Response()

: null

EOF

What this does:

• Token extraction: Extracts the Bearer token from the Authorization header
• JWT validation: Validates token signature, issuer, and expiry using Keycloak’s JWKS endpoint
• Claim-based authorization: Checks group membership for sensitive paths
• Returns decisions: Returns 401 (Unauthorized) for missing/invalid tokens, 403 (Forbidden) for insufficient permissions

Policy breakdown:

variables:

- name: token_issuer # Where to get public keys

- name: certs # Downloaded certificates

- name: authorization # Parsed Authorization header

- name: token # Decoded JWT (or null)

validations:

- expression: > # First rule: valid token required

variables.token == null || !variables.token.Valid

? envoy.Denied(401).Response()

: null

If token is null (no token provided) or !token.Valid (expired/invalid), return 401.

Step 8: Test Authorization

Set up test environment:

# Create test pod

kubectl create ns test

kubectl run -i -t test-client –image=alpine –restart=Never -n test

# Inside the test pod, install tools

apk add curl jq

Get a JWT token from Keycloak:

# Set variables (adjust for your configuration)

ISSUER=“http://keycloak.keycloak.svc.cluster.local:8080/realms/master”

TOKEN_ENDPOINT=“$ISSUER/protocol/openid-connect/token”

# Get access token

ACCESS_TOKEN=$(curl -s -X POST $TOKEN_ENDPOINT \

-H “Content-Type: application/x-www-form-urlencoded” \

-d “grant_type=password” \

-d “client_id=kube” \

-d “client_secret=kube-client-secret” \

-d “username=user-dev” \

-d “password=user-dev” \

-d “scope=openid profile email” | jq -r ‘.access_token’)

echo $ACCESS_TOKEN

Test with a valid token (should succeed):

curl -i -H “Authorization: Bearer $ACCESS_TOKEN” \

http://httpbin.app:8000/get

Expected: HTTP 200 with response from HTTPBin.

Test without token (should fail with 401):

curl -i http://httpbin.app:8000/get

Expected: HTTP 401 Unauthorized.

Test admin endpoint without admin group (should fail with 403):

curl -i -H “Authorization: Bearer $ACCESS_TOKEN” \

http://httpbin.app:8000/get/users

Expected: HTTP 403 Forbidden (unless your user is in platform-admins group).

Inspect the token:

# Decode JWT (without validation)

echo $ACCESS_TOKEN | cut -d’.’ -f2 | base64 -d | jq

You’ll see claims like:

{

“sub”: “user-id”,

“groups”: [“kube-dev”],

“iss”: “http://keycloak.keycloak.svc.cluster.local:8080/realms/demo-realm”,

“exp”: 1234567890,

“iat”: 1234564290

}

Step 9: Advanced Policy Patterns

Path-based authorization:

validations:

# Allow GET for all authenticated users

- expression: >

object.attributes.request.http.method == “GET”

? envoy.Allowed().Response()

: null

# POST/PUT/DELETE require write permissions

- expression: >

object.attributes.request.http.method in [“POST”, “PUT”, “DELETE”] &&

!(“api-writers” in variables.token.Claims.groups)

? envoy.Denied(403).Response()

: null

Service-specific authorization:

validations:

# Only service accounts can call internal APIs

- expression: >

object.attributes.request.http.path.startsWith(“/internal/”) &&

!variables.token.Claims.client_id.startsWith(“service-”)

? envoy.Denied(403).Response()

: null

Time-based access:

validations:

# Check if token is about to expire (within 5 minutes)

- expression: >

variables.token.Claims.exp < timestamp(now).getSeconds() + 300

? envoy.Denied(401).WithMessage(“Token expiring soon”).Response()

: null

Custom headers in response:

validations:

- expression: >

variables.token.Valid

? envoy.Allowed()

.WithHeader(“X-Auth-User”, variables.token.Claims.sub)

.WithHeader(“X-Auth-Groups”, variables.token.Claims.groups.join(“,”))

.Response()

: envoy.Denied(401).Response()

Step 10: Production Hardening

Replace Keycloak with your production IdP:

Update the token_issuer in your ValidatingPolicy:

variables:

- name: token_issuer

# For AWS Cognito:

expression: string('https://cognito-idp.<region>.amazonaws.com/<user-pool-id>/.well-known/jwks.json')

# For Azure AD:

# expression: string('https://login.microsoftonline.com/<tenant-id>/discovery/v2.0/keys')

# For Auth0:

# expression: string('https://<your-domain>.auth0.com/.well-known/jwks.json')

Enable TLS everywhere:

# Use real certificates in production

# cert-manager with Let’s Encrypt:

kubectl apply -f - <<EOF

apiVersion: cert-manager.io/v1

kind: ClusterIssuer

metadata:

name: letsencrypt-prod

spec:

acme:

server: https://acme-v02.api.letsencrypt.org/directory

email: [email protected]

privateKeySecretRef:

name: letsencrypt-prod

solvers:

- http01:

ingress:

class: istio

EOF

Add resource limits:

# For Kyverno Authorization Server

resources:

requests:

memory: “256Mi”

cpu: “200m”

limits:

memory: “512Mi”

cpu: “500m”

Configure high availability:

# Scale Kyverno Authorization Server

kubectl scale deployment kyverno-authz-server -n kyverno –replicas=3

# Enable pod disruption budget

kubectl apply -f - <<EOF

apiVersion: policy/v1

kind: PodDisruptionBudget

metadata:

name: kyverno-authz-server

namespace: kyverno

spec:

minAvailable: 2

selector:

matchLabels:

app.kubernetes.io/name: kyverno-authz-server

EOF

Centralized logging:

# View authorization decisions

kubectl logs -n kyverno deployment/kyverno-authz-server -f

# Sample log entry

{

“level”: “info”,

“ts”: “2025-10-13T10:15:30Z”,

“caller”: “server/server.go:123”,

“msg”: “authorization decision”,

“decision”: “deny”,

“reason”: “invalid_token”,

“path”: “/api/users”,

“method”: “GET”,

“user”: “unknown”,

“status_code”: 401

}

The Future of Kubernetes Authorization is Centralized

Centralized authorization with Kyverno and Istio fundamentally transforms how you secure Kubernetes workloads. By eliminating per-pod OPA sidecars, you reduce operational complexity, cut significant cloud costs, and gain immediate policy consistency across your entire mesh. The architecture we’ve built here—JWT validation via JWKS, claim-based authorization, and fine-grained access control—applies to both north-south ingress traffic and east-west service communication, without requiring changes to the application code.

The business impact is clear: lower infrastructure spend, faster policy rollouts, simplified compliance, and reduced operational burden. Whether you’re securing a handful of microservices or hundreds, this centralized approach scales effortlessly while preserving your existing investments in identity infrastructure.

Ready to implement this in your environment? Start with a single namespace or service group to validate performance and policy coverage. Integrate with your existing IdP (AWS Cognito, Azure AD, Okta), manage policies via GitOps, and measure the resource savings. As confidence grows, expand incrementally, retiring sidecars and enjoying the operational simplicity of centralized authorization.

Next Steps and Resources

• Explore the code: The complete example is available at https://github.com/nirmata/demo-kyverno-authz-server.
• Read more about Kyverno: kyverno.io/docs
• Learn Istio security: istio.io/docs/concepts/security
• Platform engineering best practices: Explore how policy-as-code accelerates DevSecOps workflows at scale

The future of Kubernetes authorization is centralized, declarative, and mesh-native. Start building it today.
